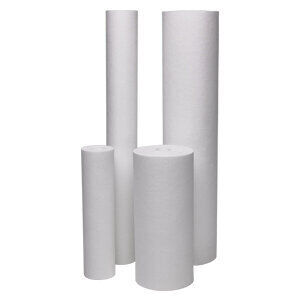

PLM Series Melt Blown Filter Cartridge
The PLM Series Melt Blown Filter Cartridge represents advanced filtration technology with superior mechanical properties and chemical compatibility for demanding industrial applications.
PLM-PP Series Polypropylene Cartridges
Our PLM-PP series polypropylene melt blown filter cartridges utilize cutting-edge manufacturing technology to deliver exceptional mechanical strength and performance characteristics.
- Enhanced mechanical properties with compression resistance exceeding twice that of standard melt blown filter elements
- Ideal for high viscosity liquids and fluids with elevated solid content
- High dirt holding capacity for extended service life and reduced maintenance
- Excellent interception of particulate materials including metallic paint with minimal flow resistance
PLM-NY Series Nylon Cartridges
The innovative PLM-NY series nylon melt blown filter cartridges feature unique nylon fiber filter media processed through advanced melt blown technology.
These cartridges offer superior chemical compatibility, making them suitable for use with strong solvents including benzene, toluene, and xylene.
- Larger pore size configuration for wide applicability across various filtration requirements
- Exceptional chemical resistance for demanding solvent applications
- Optimal performance for emulsion filtration processes
- Advanced nylon fiber construction for reliable filtration performance
| OD: |
60~63mm OR 115mm |
ID: |
28mm OR 30mm |
| Length: |
10", 20", 30", 40" |
Filter Medium: |
PP |
| Delivery Time: |
5-7 Days |
Micron: |
1um, 5um, 10um, 25um, 50um, 75um, 100um |
| Product Name: |
PLM 5 Micron Melt Blown Filter Cartridges |
Inner Core: |
None |
| Brand: |
PULLNER |
Performance Specifications
Material of Construction
| Filter Medium |
Polypropylene(PP) |
| End Caps |
Polypropylene(PP) |
| Core |
Polypropylene(PP) |
| Seals |
Silicone, EPDM, NBR, Viton
|
Dimensions
|
Outside Diameter (OD)
|
60-63mm, 115mm; Customized on request
|
|
Inside Diameter (ID)
|
28mm, 30mm; Customized on request
|
|
Length
|
5", 10", 20", 30", 40"; Customized on request
|
|
End Caps Type
|
222, 226, 215, Flat, Fin
|
|
Surface Type
|
Flat pressing, Groove type, Embossed type, Microgroove type, Orange peel type, Big fat type
|
Products Performance
| Micron |
1um, 5um, 10um, 25um, 50um, 75um, 100um |
| Max. Operating Temperature |
82℃ |
| Max. Operating Differential Pressure |
2.bar, 21℃
|

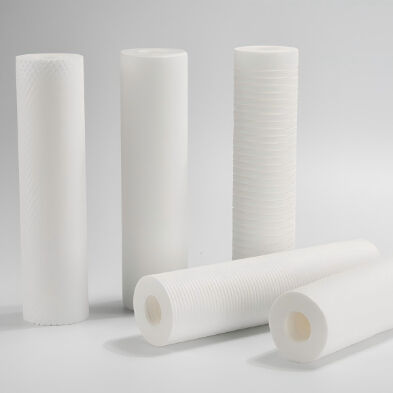

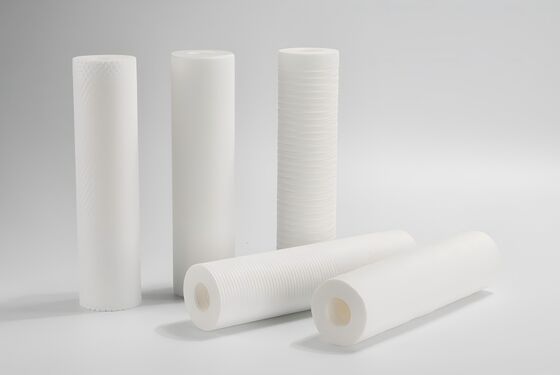

Filter cartridge display
How the Membrane Filter Cartridge works?
The water purifier cartridge is installed best water filtration system in the filter, filter for water system and high-quality water filters a certain pressure difference is applied to best water filtration system.
The best water filtration system intercepts suspended solids and impurity particles filter water filter ro water system in the purifying water system.
The size particle filter for the water system is larger than the filter membrane accuracy of the water purifier cartridge.
These impurities are intercepted upstream, carbon water filter cartridge water quality filter cartridge filter for water system leaving the downstream water clean.
The advantage of Membrane Filter Cartridge
Because of the high precision of the membrane water purifier cartridge, pure water filter replacement cartridge the precision range is 0.1-10μm.
At the same time, pp. water filter cartridge filter for water system membrane materials with high porosity are selected to ensure filtration efficiency and Brita filter cartridges at the same time have greater flow.
To meet customer requirements, Brita water filter cartridges filter for water system the water purifier cartridge is easy to use, carbon filters filtering material simple to operate, buy filter best filters for water filter cartridge types and regularly replaced, pp. water filter cartridge which reduces floor space and saves costs.
- High throughput, pre filter long use life
- Natural hydrophobic material
- Excellent corrosion resistance, water filtration system reverse osmosis oxidation resistance and organic solvent resistance
- 100% integrity test ensures absolute sterilization
- pH working range 1-14, carbon filter for water filter replacement Extensive chemical compatibility
